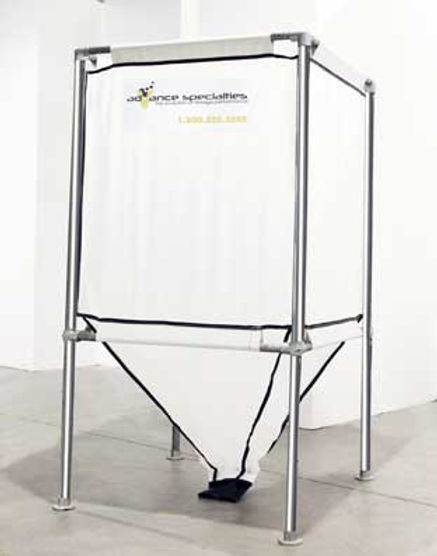

A rectangular frame of metal pipes holds a rectangle silo made of white fabric. The lower 40% of the silo is a conical shape that tapers to a small black opening near the floor.

Manufacturing Industry
Advance Specialties custom manufactures flexible silos for storing your powdered and granulated materials. Our highly porous fabric is permeable to air which allows the stored product to breath. Using the latest fabrics available we can match the storage, stabilization and environmental demands of your expandable resins.

Agriculture

Our silos are ideal for the bulk storage of most agricultural commodities such as legumes, cereals, and seeds.

All of our bags are manufactured in our Tennessee plant. We're proud to offer U.S. made silos that are reasonably priced and with quick turn around times.

Request a quote

Fabrics and Vinyls

A close-up image of a white fabric square with a texture formed by a grid of light gray dots.

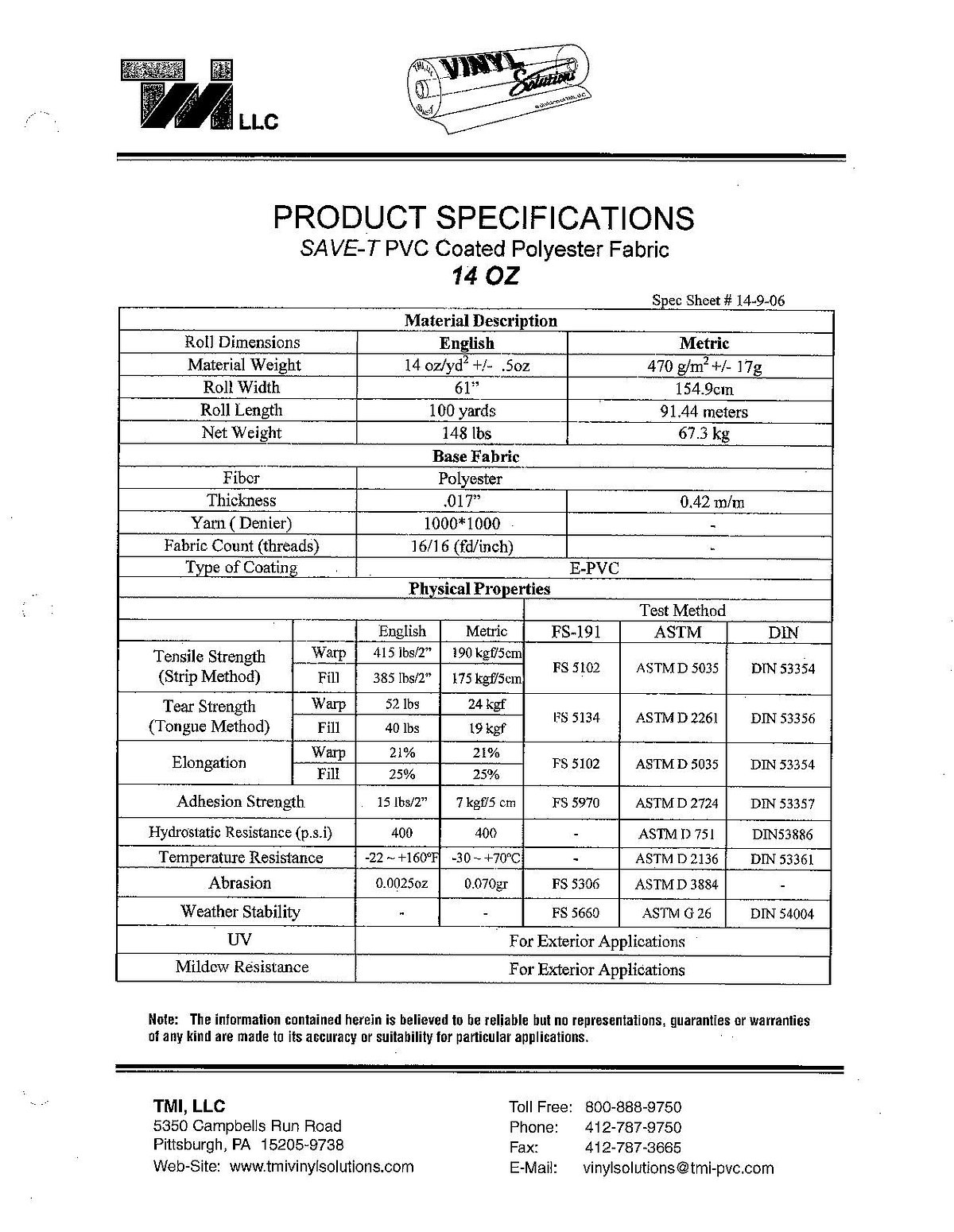

14 oz Vinyl
14 oz Vinyl-Coated Polyester
Primarily used as standard frame sleeves for suspending silos from steel tube frames. This vinyl is also used as inlet/outlet spout pipe connections for material transmission.
Specs
MSDS

A close-up image of a white fabric square with a texture formed by light gray horizontal lines or seams.

80 CFM
80 CFM (F2103)
Woven polypropylene fabric with an average pour size of 30 microns and bubble point (largest opening) of 75 microns. Recommended for "re-grind" storage, dust resistant applications or silo storage where low air/gas permeability is desired.
Specs
MSDS

A close-up image of a white fabric square with a texture formed by light gray diagonal lines or seams.

100 CFM
100 CFM (F0070)
Woven polypropylene fabric with an average pour size of 45 microns and bubble point (largest opening) of 130 microns. Recommended for "re-grind" storage, dust resistant applications or where low air/gas permeability is desired. This particular grade of fabric provides significantly higher tensile-warp, tensile fill and burst strength than smaller grades making it ideal for the storage of higher density materials.
Specs
MSDS

A close-up image of a white fabric square with a texture formed by light gray vertical lines or seams.

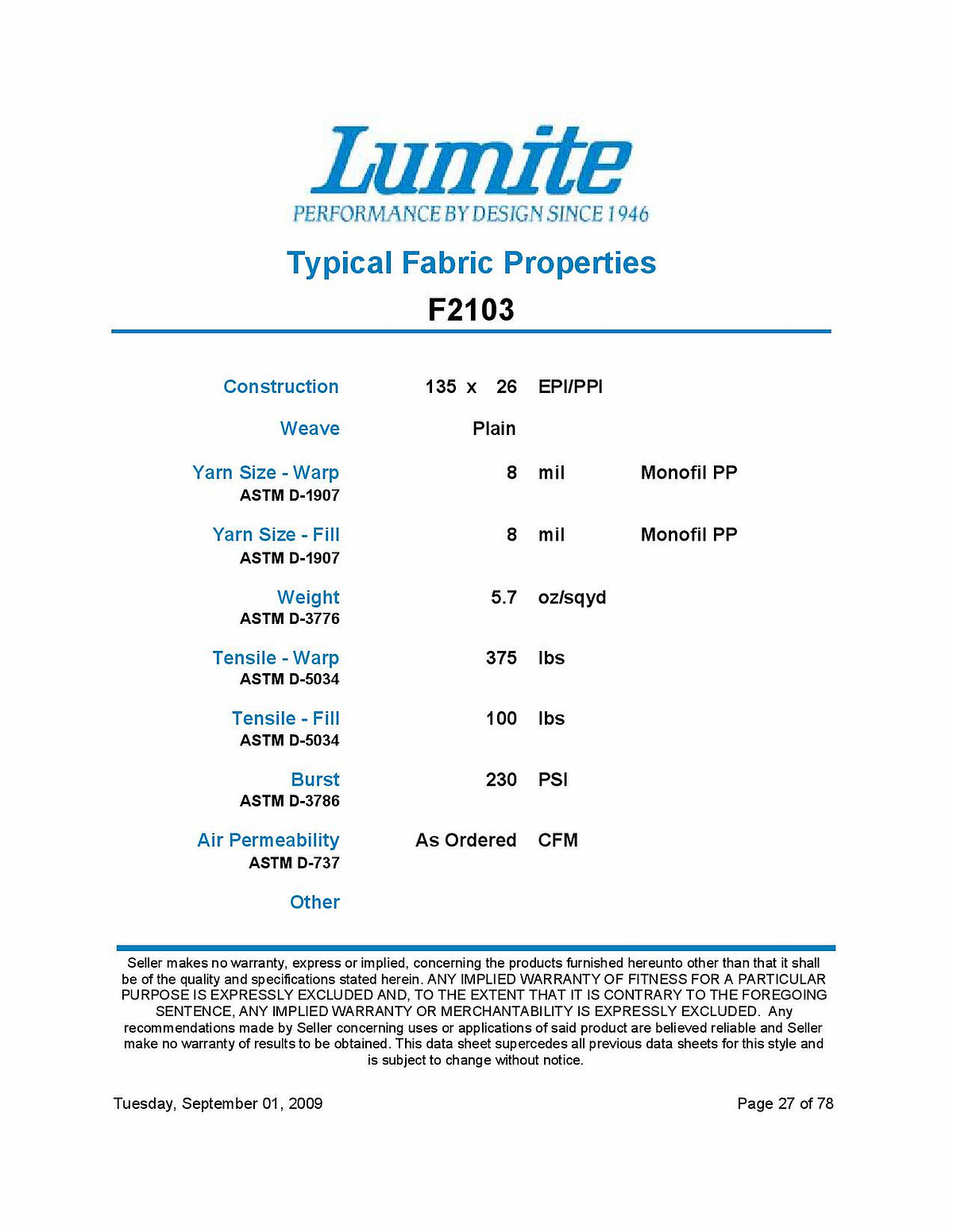

225 CFM
225 CFM (F2103)
Woven polypropylene fabric with an average pour size of 50 microns and bubble point (largest opening) of 110 microns. Recommended for "re-grind storage, or pre-expanded virgin resin storage where moderate to low air/gas flow is desired.
Specs
MSDS

A close-up image of a black fabric square with a texture formed by a grid of bright green squares.

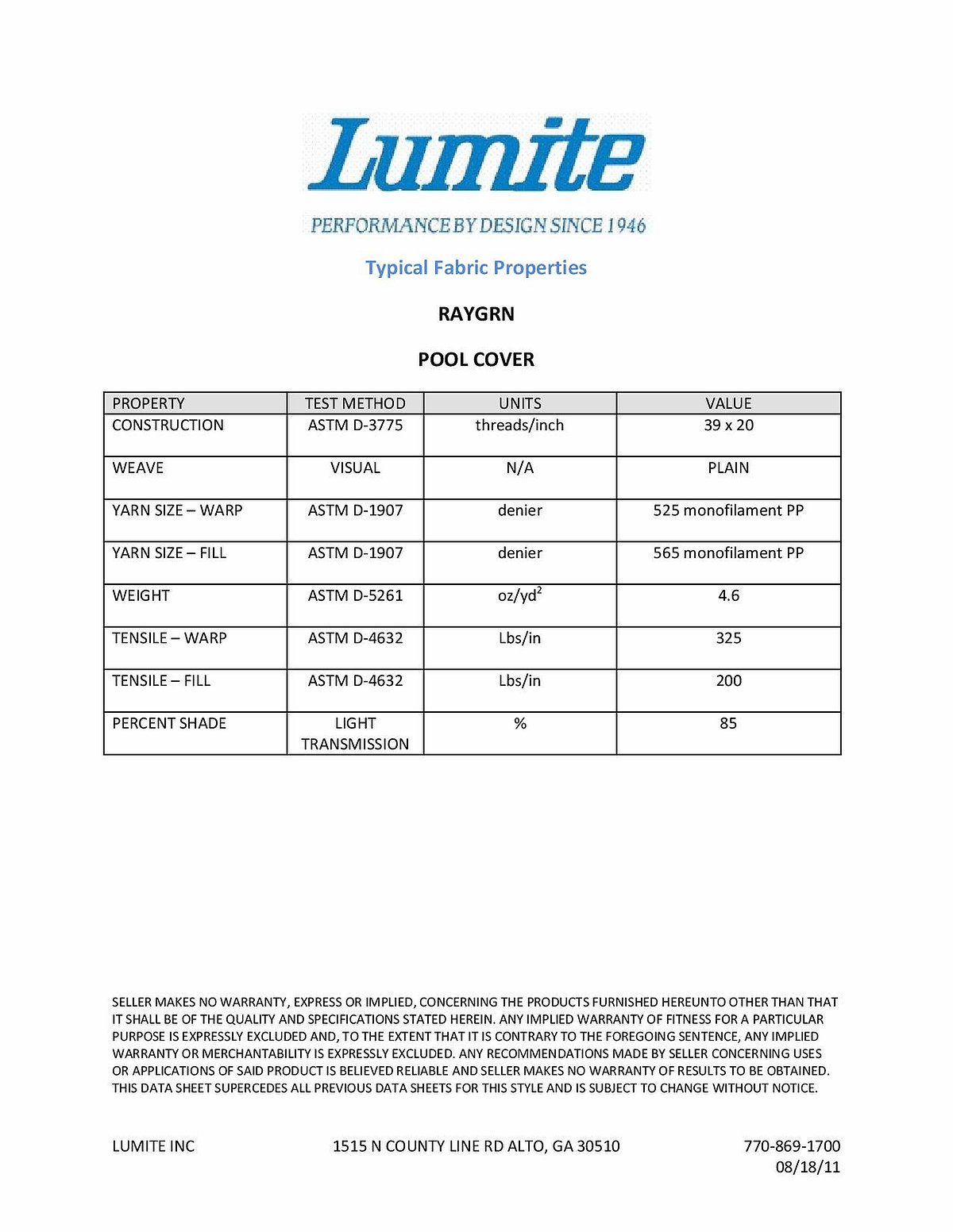

364-400 CFM (RAYGRN)
Often referred to as "GREEN/BLACK" this material is the most widely used EPS/EPP silo fabric. With an average pour size of 128 microns and bubble point (largest opening) of 306 microns green/black provides optimal air/gas flow for the drying and stabiliztion of expanded resins.
Specs
MSDS

A close-up image of a white fabric square with a texture formed by dark gray vertical lines or seams.

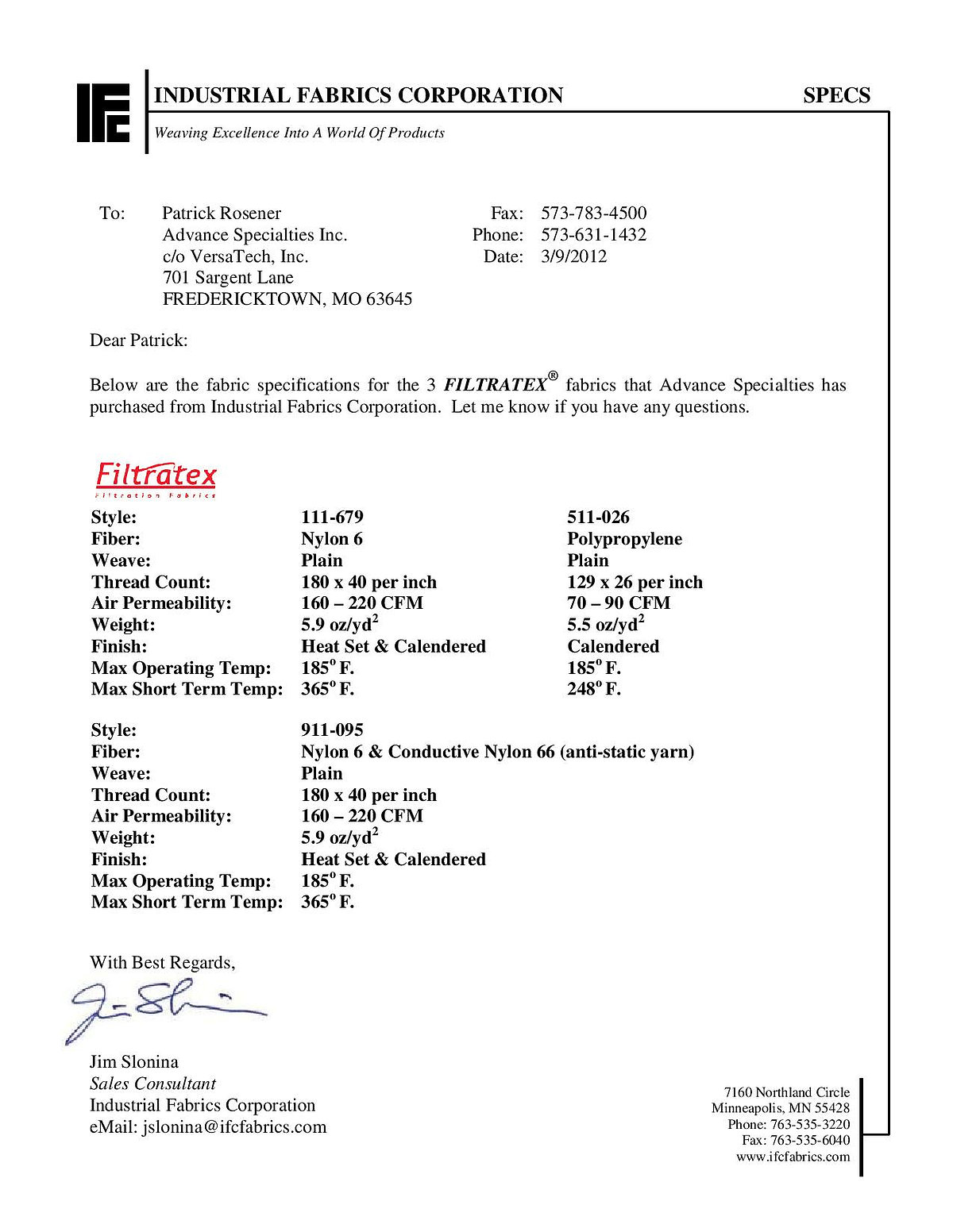

180 CFM Nylon - Anti Static
Woven nylon fabric with carbon covered nylon strands inserted every 5th pick. Designed to conduct static, these carbon yarns direct static charges to a sewn-in copper ground cable affixed to silo grounding rods. In addition to the enhanced anti static performance, it shares the same strength, permeability and temperature resistance as the standard 180 CFM Nylon (111-679).
Specs
MSDS

180 CFM
180 CFM Nylon (111-679)
Woven nylon frabic with an air permeabilility range of 160 CFM to 220 CFM and operating temperature resistance of 185 F with short term resistance up to 365 F. Silos constructed from nylon combine strength, permeability and temperature resistance.
Specs
MSDS

16oz. Hypalon
16oz Vinyl - Rubber Coated
Primarily used as "High Temperature" frame sleeves for suspending silo from steel tube frames. This vinyl is also used as inlet/outlet spout pipe connections for material transmission.
Specs
MSDS

1100 CFM
1100 CFM (F9515)
Screen or mesh type of fabric woven from polypropylene with a pour size of 285 microns and 34% open area. This fabric is typically used as vented ceilings for silos.
Specs
MSDS

Framing and Support

Supporting your silo is our specialty. Whether you choose traditional schedule 40 steel pipe with clamp connections or square tube steel Advance Specialties can provide either option.

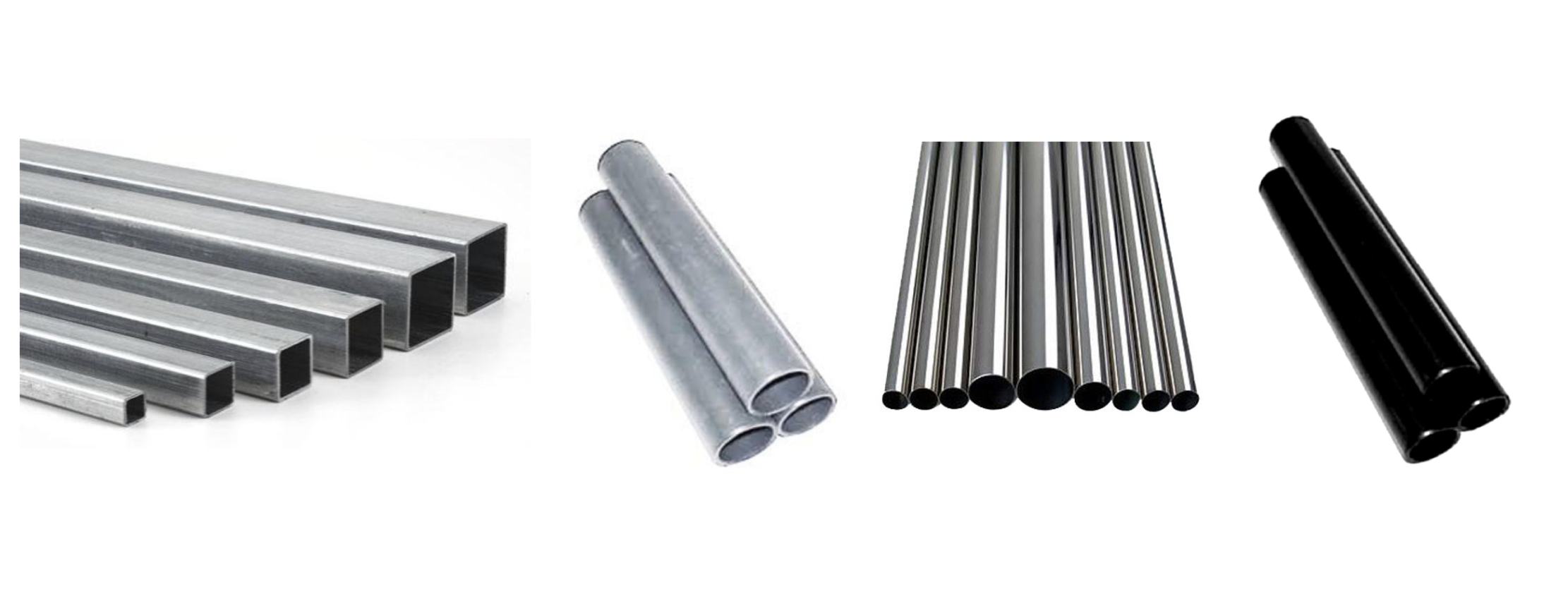

An image of four groups of pipes. On the left side square pipes arranged from small to large. The next group is three generic gray pipes. Next a group of 10 shiny pipes orinted vercally with the largest diameter pipes in the center. The last group is three generic black pipes
